UV Sterilizer System, Manufacturer

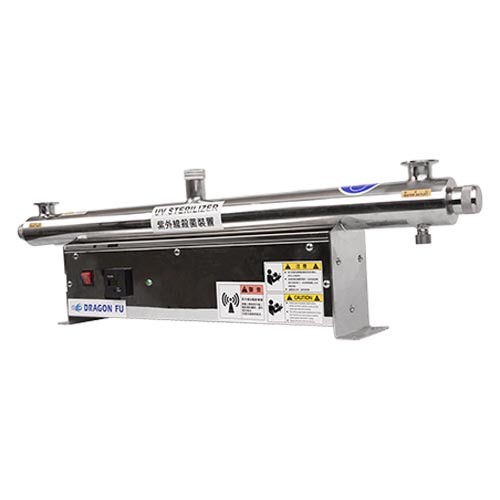

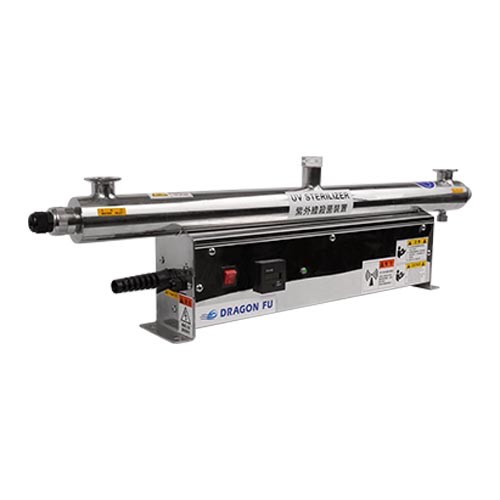

Integrated electrical box - ultraviolet water sterilization

Type:Separation Type - UV Water Sterilization
    ⬣ The lamp tube has a long lifespan, saving costs.
    ⬣ Quick installation and easy operation.
    ⬣ Uses quartz tubes with excellent penetration rates, improving sterilization efficiency.
    ⬣ The main body of the UV sterilizer system is made of stainless steel SUS304, able to withstand 7 kg of water pressure.
    ⬣ Wide application range, suitable for sterilizing any beverage water.
    ⬣ High-efficiency electronic stabilizers increase sterilization efficiency by 20%.
    ⬣ Easy to replace and maintain the lamp tube.
    ⬣ The sterilization efficiency for E. coli and Staphylococcus aureus reaches 99.99%, and for Bacillus subtilis spores, it reaches 99.9%.
Specifications

Equipment Model

Processed Water Volume

Total Power

Inlet and Outlet Size

L(mm)

W(mm)

H(mm)

DFW-CR-20

2t/h

40W

1" BSP or NPT

930

115

229

DFW-CR-50

5t/h

80W

1 1/4" BSP or NPT

930

140

229

DFW-CR-100

10t/h

160W

2" NPT

930

150

333

DFW-CR-150

15t/h

240W

2 1/2" NPT

930

185

333

DFW-CR-200

20t/h

320W

2 1/2" NPT

930

185

359

DFW-CR-250

25t/h

315W

3" NPT

1220

185

359

DFW-CR-300

30t/h

360W

3" NPT

1220

200

368

DFW-CR-450

45t/h

480W

4" NPT

1220

220

368

DFW-CR-500

50t/h

600W

4" NPT

1220

220

419

DFW-CR-640

64t/h

720W

4" NPT

1220

220

419

DFW-CR-700

70t/h

960W

5"NPT

1640

250

419

DFW-CR-800

80t/h

1280W

5"NPT

1640

250

419

DFW-CR-900

90t/h

1600W

6"NPT

1640

285

523

DFW-CR-1000

100t/h

1920W

6"NPT

1640

285

523

DFW-CR-1200

120t/h

2240W

6"NPT

1640

325

675

DFW-CR-1500

150t/h

2560W

8"NPT

1640

340

675

DFW-CR-2000

200t/h

3200W

8"NPT

1640

340

675

Work Environment Requirements

Water Quality

Turbidity

≦5NTU

Air Environment

Ambient Temperature

≧25℃

Iron Content

≦0.3mg/L

Relative Humidity

≦90%

Manganese Content

≦0.05ppm

Power Supply

Input Voltage

1ψAC220V
or AC380V

Color

≦15 degrees

Input Frequency

50~60Hz

Water Temperature

≦5~60℃

Equipment

Working Pressure

≦0.6MPa

Hardness

Not exceeding 120mg/L

Working Temperature

2-60℃

Solid Suspended Solids

≦10mg/L

Cavity Material

SUS304
or SUS316

Hydrogen Sulfide

≦0.05ppm

UV Penetration Green

> 85%
