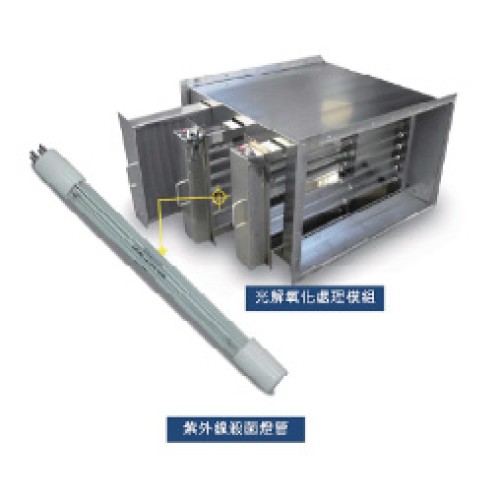

DFA-G Series - Ultraviolet UVC Waste Gas Treatment
DFA-G Series - Ultraviolet UVC Waste Gas Treatment
Type：DFA-G Series - Ultraviolet UVC Waste Gas Treatment
-
1. Highly effective odor removal: Can efficiently eliminate volatile organic compounds (VOCs), hydrogen sulfide, ammonia, thiols, and various unpleasant odors, with a deodorization rate exceeding 95%.
2. No need to add any substances: Just set up the corresponding duct for the polluted gas to pass through this equipment for deodorization and decomposition, without the need to add any chemicals.
3. Can adapt to deodorization and purification of high concentrations, large volumes, and different types of waste gases, much like a UV treatment system is adaptable to various environmental conditions.
Specifications
|
Product Model |
Odorous Gas |
||
|
Processing Airflow |
Energy per Unit |
Total Power of Lamp Tubes |
|
|
(CMH) |
(M³/W) |
(KW) |
|
|
DFA-G1 |
500 |
2.56 |
1.28 |
|
DFA-G2 |
800 |
2 |
1.6 |
|
DFA-G3 |
1200 |
2 |
2.4 |
|
DFA-G4 |
2000 |
1.6 |
3.2 |
|
DFA-G5 |
3000 |
1.6 |
4.8 |
|
DFA-G6 |
4000 |
1.6 |
6.4 |
|
DFA-G7 |
6000 |
1.6 |
9.6 |
|
DFA-G8 |
10000 |
1.45 |
14.5 |
|
DFA-G9 |
12000 |
1.6 |
19.2 |
|
DFA-G10 |
20000 |
1.45 |
28.8 |
