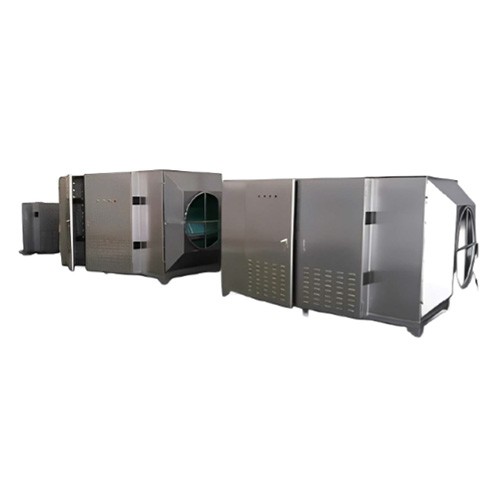

DFA-S Series - Ultraviolet UVC Waste Gas Treatment
DFA-S Series - Ultraviolet UVC Waste Gas Treatment
Type:DFA-S Series - Ultraviolet UVC Waste Gas Treatment
-
1. Efficiently remove foul odors: Capable of efficiently eliminating volatile organic compounds (VOCs), hydrogen sulfide, ammonia, mercaptans, and various foul smells, with a deodorization rate of over 95%.
2. No need to add any substances: Simply set up the corresponding air duct, allowing the polluted gases to pass through this equipment for deodorization and decomposition, without the need to add any chemicals. This is similar to how wastewater UV disinfection systems work to treat contaminated water.
3. Adaptable to deodorization and purification of high concentration, large volume, and different waste gas substances, just like wastewater UV systems are designed to handle varying water conditions and contamination levels.
Specifications
Product Model |
Odorous Gas |
||
Treatment Air Flow |
Unit Energy |
Total Power of Lamp Tubes |
|
(CMH) |
(M³/W) |
(KW) |
|
DFA-S1 |
1000 |
1.28 |
1.28 |
DFA-S2 |
1500 |
1.07 |
1.6 |
DFA-S3 |
3000 |
0.8 |
2.4 |
DFA-S4 |
5000 |
0.64 |
3.2 |
DFA-S5 |
10000 |
0.48 |
4.8 |
DFA-S6 |
15000 |
0.43 |
6.4 |
DFA-S7 |
20000 |
0.48 |
9.6 |
DFA-S8 |
30000 |
0.48 |
14.5 |
DFA-S9 |
40000 |
0.48 |
19.2 |
DFA-S10 |
60000 |
0.48 |
28.8 |
