UV Water Disinfection System, UV Disinfection Unit, Manufacturer

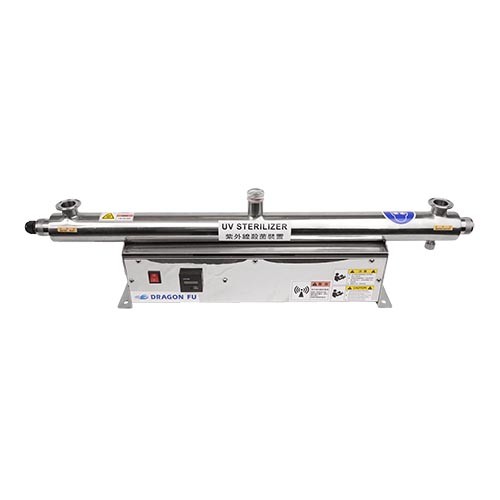

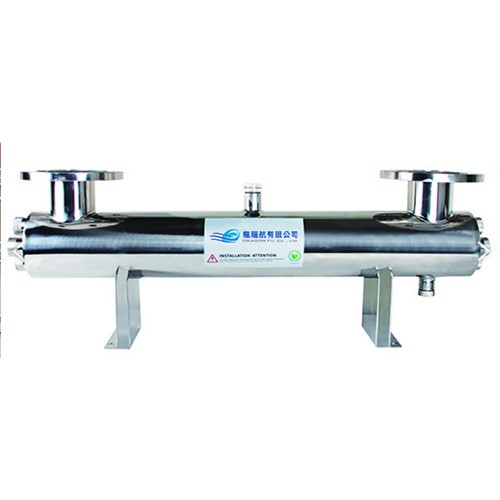

Electrical box separation type - ultraviolet water disinfection

Type:Electric box separation type - UV water sterilization
    ⬣ The lamp has a long lifespan, saving costs.
    ⬣ Quick installation, easy operation.

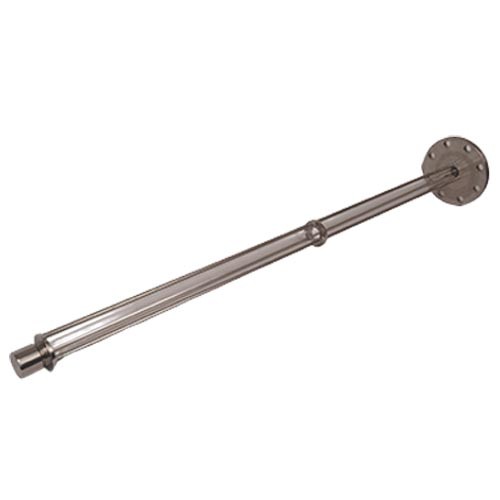

    ⬣ Uses a quartz sleeve for better penetration, improving sterilization efficiency.
    ⬣ The main body of UV disinfection unit is made of stainless steel SUS304, capable of withstanding a water hammer force of 7 kilograms.
    ⬣ Wide application range, suitable for sterilizing water used in any beverage.
    ⬣ Uses a high-efficiency electronic stabilizer to increase sterilization efficiency by 20%.
    ⬣ Easy replacement and maintenance of the lamp.
    ⬣ The sterilization efficiency for Escherichia coli and Staphylococcus aureus reaches 99.99%, and for Bacillus subtilis spores, it reaches 99.9%.
Specification

Electric box separation type - UV water sterilization

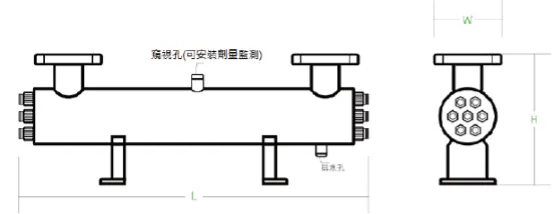

Equipment Model

Water Treatment Capacity

Total Power

Inlet and Outlet Size

L(mm)

W(mm)

H(mm)

DFW-CR-20

2t/h

40W

1" BSP or NPT

930

115

229

DFW-CR-50

5t/h

80W

1 1/4" BSP or NPT

930

140

229

DFW-CR-100

10t/h

160W

2" NPT

930

150

333

DFW-CR-150

15t/h

240W

2 1/2" NPT

930

185

333

DFW-CR-200

20t/h

320W

2 1/2" NPT

930

185

359

DFW-CR-250

25t/h

315W

3" NPT

1220

185

359

DFW-CR-300

30t/h

360W

3" NPT

1220

200

368

DFW-CR-450

45t/h

480W

4" NPT

1220

220

368

DFW-CR-500

50t/h

600W

4" NPT

1220

220

419

DFW-CR-640

64t/h

720W

4" NPT

1220

220

419

DFW-CR-700

70t/h

960W

5"NPT

1640

250

419

DFW-CR-800

80t/h

1280W

5"NPT

1640

250

419

DFW-CR-900

90t/h

1600W

6"NPT

1640

285

523

DFW-CR-1000

100t/h

1920W

6"NPT

1640

285

523

DFW-CR-1200

120t/h

2240W

6"NPT

1640

325

675

DFW-CR-1500

150t/h

2560W

8"NPT

1640

340

675

DFW-CR-2000

200t/h

3200W

8"NPT

1640

340

675

▲ UV water disinfection system products can be customized, please call (email) for inquiries

Work environment requirements

Influent Water Quality

Turbidity

≦5NTU

Air Environment

Ambient Temperature

≧25℃

Iron Content

≦0.3mg/L

Relative Humidity

≦90%

Manganese Content

≦0.05ppm

Power Supply

Input Voltage

1ψAC220V
or AC380V

Color

≦15 degrees

Input Frequency

50~60Hz

Water Temperature

≦5~60℃

Equipment

Working Pressure

≦0.6MPa

Hardness

Not exceeding 120mg/L

Working Temperature

2-60℃

Suspended Solids

≦10mg/L

Cavity Material

SUS304
or SUS316

Hydrogen Sulfide

≦0.05ppm

Ultraviolet Penetration Green

> 85%
