UV Sterilization Company

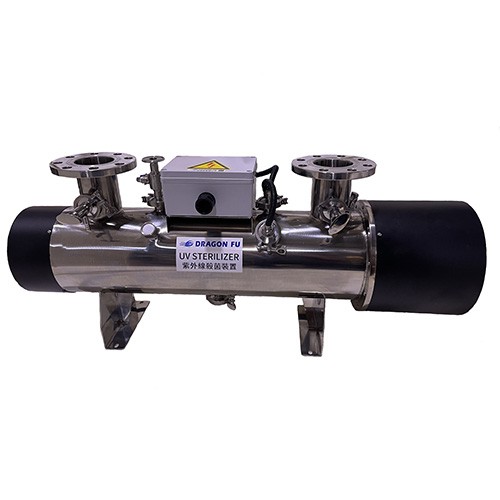

Ultraviolet medium pressure water sterilization

Type:Ultraviolet medium pressure water sterilization
    Medium Pressure Ultraviolet Algae Removal and Sterilization Technology
    This equipment is an effective method for algae removal, sterilization, and disinfection using ultraviolet light, leading the technology field in the water treatment industry. This technology utilizes inert gases and mercury ions within the medium pressure ultraviolet lamp to generate powerful ultraviolet rays, which are used for algae removal, sterilization, and disinfection of fluids.
Medium Pressure Ultraviolet Algae Removal and Sterilization Technology

This device is an effective method for algae removal, sterilization, and disinfection using ultraviolet light, leading in the field of water treatment technology. As UV sterilization companies, we use this technology, which employs inert gases and mercury ions in medium-pressure ultraviolet lamps to generate powerful ultraviolet light for algae removal, sterilization, and disinfection of fluids.

Ultraviolet medium pressure water sterilization

The high efficiency of the sterilization effect leads to the elimination of various harmful bacteria such as Vibrio, Streptococcus, Pseudomonas, Bacillus, and sliding bacteria in marine aquaculture.

Ultraviolet medium pressure water sterilization

Working Principle of UV Sterilization Device

    The main principle of the ultraviolet sterilization device is to use the ultraviolet light emitted from the lamp tube to penetrate microbial cell membranes, destroying various pathogens, bacteria, parasites, and other pathogenic entities' DNA structure, damaging their nucleic acid molecular bonds, causing immediate death or inability to reproduce in bacteria, and destroying and altering the microbial DNA (deoxyribonucleic acid) structure, thus achieving sterilization and disinfection.

    Ultraviolet light can be categorized based on its biological effects into UV-A (320-400nm), UV-B (275-320nm), UV-C (200-275nm), and vacuum ultraviolet portions. In water treatment, the UV-C portion of ultraviolet light is actually used, with around 260nm confirmed to be the most efficient for sterilization. Ultraviolet disinfectors integrate various sciences such as optics, microbiology, mechanics, chemistry, electronics, and fluid dynamics. They employ specially designed, high-efficiency, high-intensity, and long-lifespan ultraviolet UV-C light generation devices to produce strong ultraviolet UV-C light to irradiate the flowing water. When the bacteria, viruses, etc. in the water are exposed to a certain dose of ultraviolet UV-C light (with a wavelength of 253.7nm), their cell DNA and structure are destroyed, making cell regeneration impossible, thus achieving water disinfection and purification.

Medium Pressure UV is Superior to Traditional Low Pressure UV

1)Sterilization Effect: Medium pressure ultraviolet lamps have a superior sterilization effect compared to low pressure ultraviolet lamps.

2)Inhibition of Light Revitalization Phenomenon: Medium pressure ultraviolet lamps contain a large amount of 365nm wavelength light, and in experiments using only 365nm light, it has been confirmed that due to the effect of 365nm light, the phenomenon of light revitalization was effectively suppressed.

     Light Revitalization Phenomenon.

3)Miniaturization of Sterilization Devices: Compared to devices using low pressure ultraviolet lamps, medium pressure ultraviolet devices have a higher output of ultraviolet energy, enabling greater miniaturization of sterilization devices.



Ultraviolet medium pressure water sterilization

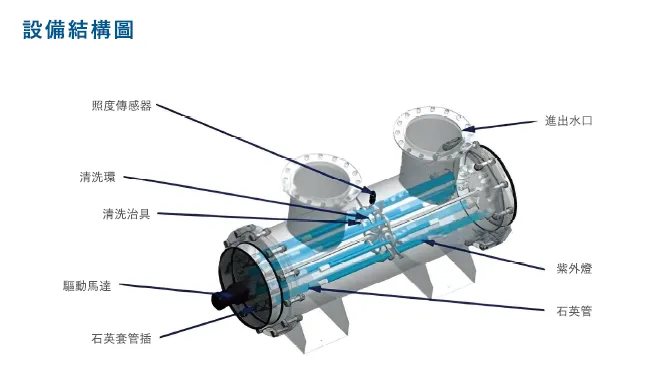

Device Structure Diagram

Ultraviolet medium pressure water sterilization

Model Specifications

Model

Flow(T)

Connection Method

Number of Lamps(pieces)

Power(W)

DFLBK-20A

15-40

Sanitary Joint

1

1000

DFLBK-50A

45-75

Sanitary Joint

1

2000

DFLBK-100A

80-120

Sanitary Joint

1

3000

DFLBK-150A

130-170

Sanitary Joint

1

6000

DFLBK-200A

180-250

Sanitary Joint

1

6000

DFLBK-310A

310-370

Flange

1

7000

DFLBK-380A

380-500

Flange

1

8000

*Any other needs can be customized
